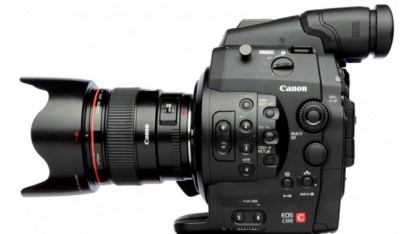

Canon C300 MK1
Product code: 1900
Features:
Recording/Codec
Signal System: NTSC and PAL
Compression: 8 Bit MPEG-2 Long
GOP
Color Space: 4:2:2 at 50Mbps
recording
Maximum Bit Rate: 50Mbps (CBR)
Canon Log Gamma: Available
File Format: MXF (OP-1a)
Recording
Options:
50Mbps (CBR) 4:2:2 422P@HL
1920×1080: 59.94i/29.97p/23.98p;
50i/25p; True 24 (24.00)
1280×720: 59.94i/29.97p/23.98p;
50p/25p; True 24 (24.00) 35Mbps (VBR) 4:2:0 MP@HL
1920×1080: 59.94i/29.97p/23.98p;
50i/25p
1280×720: 59.94p/29.97p/23.98p;
50p/25p 25Mbps (CBR) 4:2:0 MP@H14
1440×1080: 59.94i/29.97p/23.98p;
50i/25p
Audio
Linear PCM; 2-Channel; 16-Bit;
48kHz
Built-in Microphone: None
External Audio Inputs: 2 – XLR
inputs (Auto and Manual level settings)
Recording Channel Selection: Two
channel recording
XLR Mic Trimming: Available;
-12dB, -6 dB, 0dB or +12dB
Recording Level Adjustment Range:
– Infinity to +18dB
Phantom Power: Available: +48V
Headphone Adjustment: 16
Settings; Volume is muted at lowest setting
1KHz Tone: Available: -12, -18 or
-20 dB
Sensor
Sensor Type: CMOS sensor
(single-panel), equivalent to Super 35mm
Sensor Size: 24.6 x 13.8mm
effective screen size (6.4 x 6.4 micrometer pixel pitch)
Scanning System: Progressive
Number of Sensors: 1
Filter: RGB Primary Color Filter
(Bayer Array)
Imaging Processor: DIGIC DV III
Effective
Pixels
Approx. 8.29 megapixels (3840 x
2160)
Total
Pixels
Approx. 9.84 megapixels (4206 x 2340)
Max.
Movie Recording Time
64GB Compact Flash (CF) card
Greater capacity is possible when
both are used.
25Mbps: 310 minutes
35Mbps: 225 minutes
50Mbps: 160 minutes
Lens
Interchangeable: EF mount
Focusing
System
Manual; Autofocus system not
available
Max.
Shutter Speed
1/2000 sec
ISO
Range
320 to 20,000, 1-stop or 1/3-stop
ND
Filter Settings
Mechanical ND filter system with
option of clear, 2 stops, 4 stops, and 6 stops
White
Balance
Auto, Manual, 2 Custom (2000K –
150,00K in 100K increments), Daylight, Tungsten
Frame
Rate
NTSC: 59.94P, 59.94i, 29.97P,
23.98P
PAL: 50P, 50i, 25P
Film: 24P
Minimum
Illumination
Full AUTO mode: TBA lux
Manual mode: TBA lux
Illumination
Correction
Compensates for each lens’ light
fall-off. Lens specific data stored in firmware
Genlock
Terminal
BNC (input only)
BNC (output only), with embedded
audio
Timecode
Terminals
BNC (input/output), Sync Out
(BNC)
Viewfinder
0.52-inch diagonal, color 16:9
rotatable LCD
+2.0 to -5.5 diopter eye
adjustment
LCD
Screen (Monitor Unit)
4-inch diagonal, 1.23 megapixel
color 16:9 rotatable LCD
100% field of view
adj. brightness, contrast, color,
sharpness and backlight
Microphone
None built-in
Recording
Media
CF Card (Type 1 Only): 2 slots
(Movie files); UDMA supported
SD Card: 1 slot: Still images,
Custom Picture Data*, Clip Metadata and menu settings
*Custom Picture Data and settings
are not compatible with data from other Canon models
Video
Terminal
Same as HD/SD-SDI Terminal
Audio
Terminal
XLR 3-pin jack (2), Switchable
between MIC/LINE
HDMI
Terminal
Yes (Type A), output only
AV
Mini-terminal/Headphone Terminal
3.5mm stereo mini-jack
WFT
Terminal
For compatible Wi-Fi Accessory
Operating
Temperature Range
Performance: 32°-104°F / 0°-40°C,
85% (relative humidity)
Operation: 23°-113°F / -5°-45°C,
60% (relative humidity)
Dimensions
(W x H x D)
EOS C300 + Thumb Rest: 5.2 x 7.0
x 6.7 in / 133 x 179 x 171mm
EOS C300 + Grip: 6.9 x 7.0 x 6.7
in / 174 x 179 x 171mm
Camera + Monitor: 7.3 x 9.8 x 7.4
in / 185 x 249 x 187mm
Camera + Handle + Monitor: 7.3 x
11.2 x 11.9 in / 185 x 284 x 301mm
(not including lens hood, eyecup,
grip belt)
Weight
(not including lens)
Main Unit:
EOS C300: 3.2 lb / 1430g
