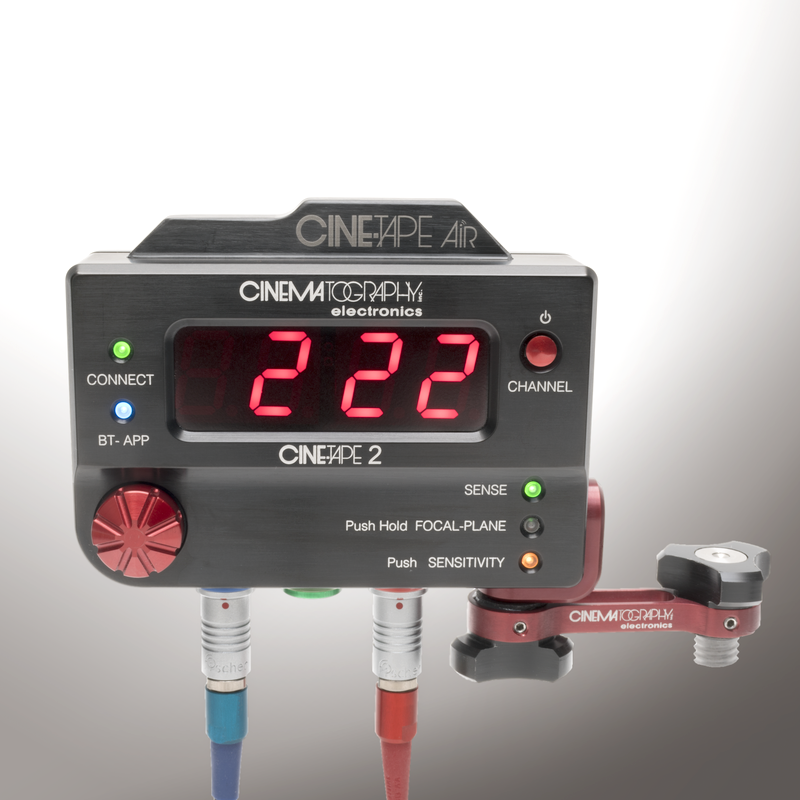

CineTape 2 measure system
Product code: 2128
Features:
CineTape 2 measure system.
Size, mm: 87.6 x 67.8 x 26
Weight: 171 grams
Construction: machined aluminum (not
cast)
Finish: black anodize, engraved
Measurement units: meters &
centimeters or inches
Measurement resolution: 1 cm; 1 inch
Focal-plane offset range: -3 to 30 m; -9
to 99 ft
Close focus range: 12 to 30 inch; 30 to
90 cm
Sensitivity range: 0 to 99 %
Sensitivity adjustment: 5 % increments
Select / adjust switch: red knob
Connect indicator: bright green LED
Antennas: integrated and internal
Wireless range: 170 meters
Wireless channels: 40 selectable
Power / channel switch: red button
Bluetooth iPhone range: 6 meters
Bluetooth compatibility: iPhone, iPad,
iPod
BT-APP connection Indicator: bright
blue LED
Power connector: Fischer 3 Pin
Remote connector: Fischer 4 Pin
Sensor connector: Fischer 5 Pin
Numeric display: bright red LED
Sense indicator: bright green LED
Focal-plane adjust indicator: bright
yellow LED
Sensitivity adjust indicator: bright yellow LED
Circuit protection: auto reset fuse
DC power requirements: 9 to 32 volts
Current consumption: 50 to 150 mA
Mounting: 1/4-20 threaded hole (2)
