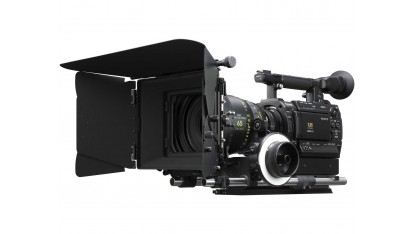

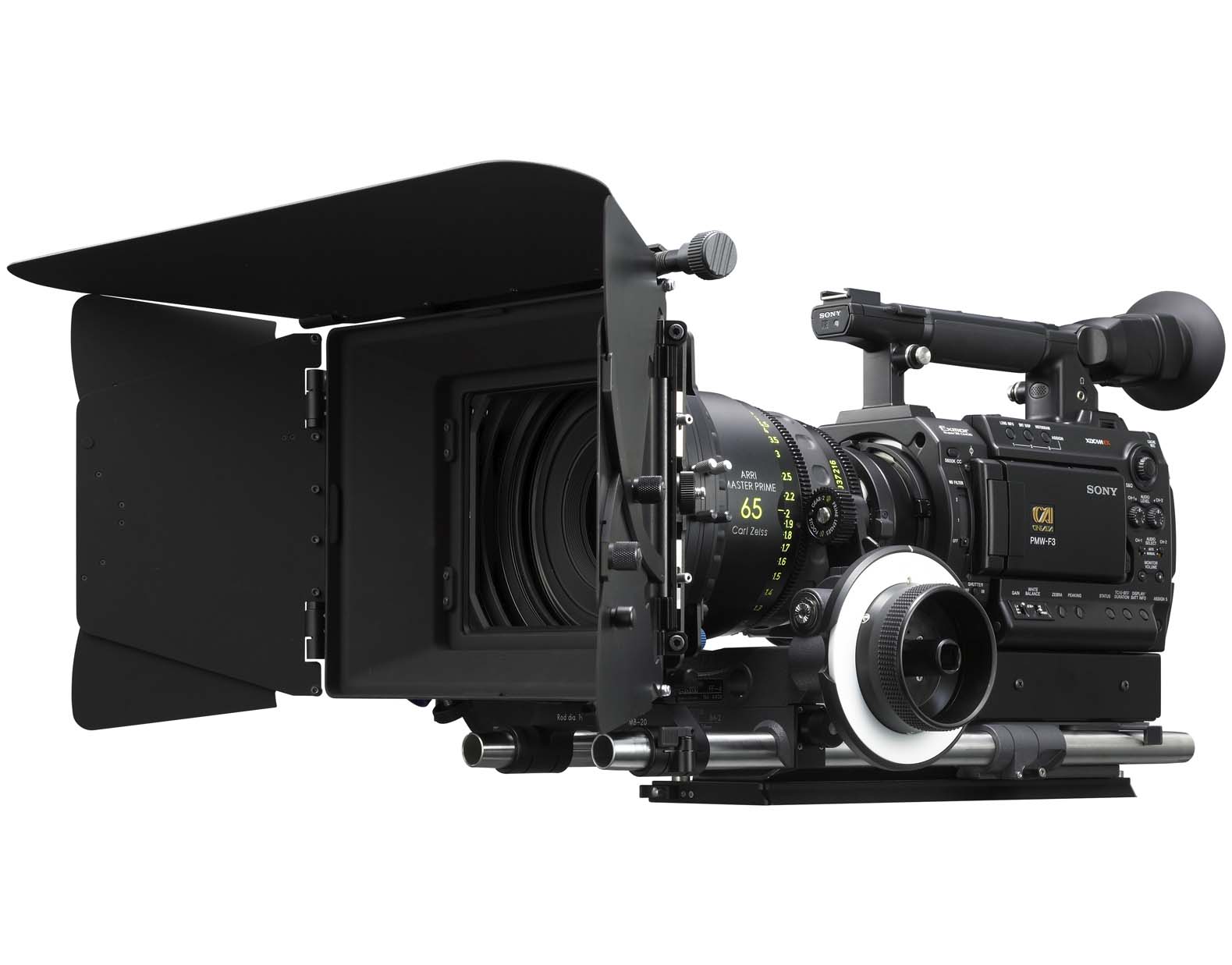

Sony PMW-F3 S35 HD
Product code: 1563
Features:
Camera:
Image device: super 35mm Exmor CMOS image sensor (23.6 x 13.3 mm)
Picture elements: 1920 x 1080 (effective)
Lens mount: Sony FZ, PL mount (with supplied lens mount adapter)
Signal-to-noise ratio: 63 dB (typical)
Sensitivity: F11 @ 2000 lux, ISO 800, 89.9% reflectance (typical)
Signal System: NTSC / PAL
Built-in Filters Neutral Density: CLEAR, 1/8, 1/64
LCD Monitor: 3.5" hybrid-type 16:9 color LCD monitor
Approx. 921,000 effective pixels
Speaker: mono
Viewfinder: 0.45", aspect ratio 16:9
Shutter speed: 1/32 - 1/2000 sec
Slow shutter (SLS): 2, 3, 4, 5, 6, 7, and 8-frame accumulation
Gain Selection: -3, 0, 3, 6, 9, 12, 18 dB, AGC
White balance: Preset, Memory A, Memory B/ATW
Memory card slot: ExpressCard / 34 (x2)
Recording format: MPEG-2 Long GOP
HD HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL
HD SP mode: CBR, 25 Mb/s, MPEG-2 MP@H-14
SD mode: DVCAM
Audio:
Linear PCM (2ch, 16-bit, 48-kHz)
Frame Rates NTSC area:
HD HQ mode: 1920 x 1080 / 59.94i, 29.97p, 23.98p
1440 x 1080 / 59.94i, 29.97p, 23.98p
1280 x 720 / 59.94p, 29.97p, 23.98p
HD SP mode: 1440 x 1080 / 59.94i, 23.98p
SD mode: 720 x 480 / 59.94i, 29.97p
PAL area:
HD HQ mode: 1920 x 1080 / 50i, 25p
1440 x 1080 / 50i, 25p
1280 x 720 / 50p, 25p
HD SP mode: 1440 x 1080/50i
SD mode: 720 x 576/50i, 25p
Slow & Quick Motion function
1 to 30 fps @ 1920 x 1080 (17 to 30 fps in dual-link mode)
1 to 60 fps @ 1280 x 720 (17 to 60 fps in dual-link mode)
Recording / playback Time HQ Mode:
Approx. 100 min with SBP-32 (32 GB) memory card
Approx. 50 min with SBP-16 (16 GB) memory card
SP/SD Mode:
Approx. 140 min with SBP-32 (32 GB) memory card
Approx. 70 min with SBP-16 (16 GB) memory card
Audio signal format: 2-channel 16-bit, 48 kHz linear PCM uncompressed
Input and output connectors:
SDI: BNC (x1 output)
Dual link HD-SDI: BNC x2 (x1 output)
Composite: BNC (x1 output)
HDMI: HDMI Type A (x1 output)
FireWire: IEEE 1394 6-pin (x1 input / output)
Line / mic: 3-pin XLR (x2 Input)
Audio: RCA x2 (x1 output)
Timecode: BNC (x1 input, x1 output)
Genlock: BNC (x1 input)
USB: standard A-Type (x1), mini B-type (x1)
Headphone: 3.5 mm stereo mini (x1 output)
Remote: 8-pin
DC Input: 4-pin XLR (male)
Power requirements: 12V DC
Power consumption: 24 W (Typical)
Operating temperature: 32 - 104°F (0 - 40°C)
Dimensions (WxHxD): 5.9 x 7.4 x 8.3" (15.1 x 18.9 x 21 cm) (protrusion not included)
Weight: 5.3 lb (2.4 kg) (camera only)
