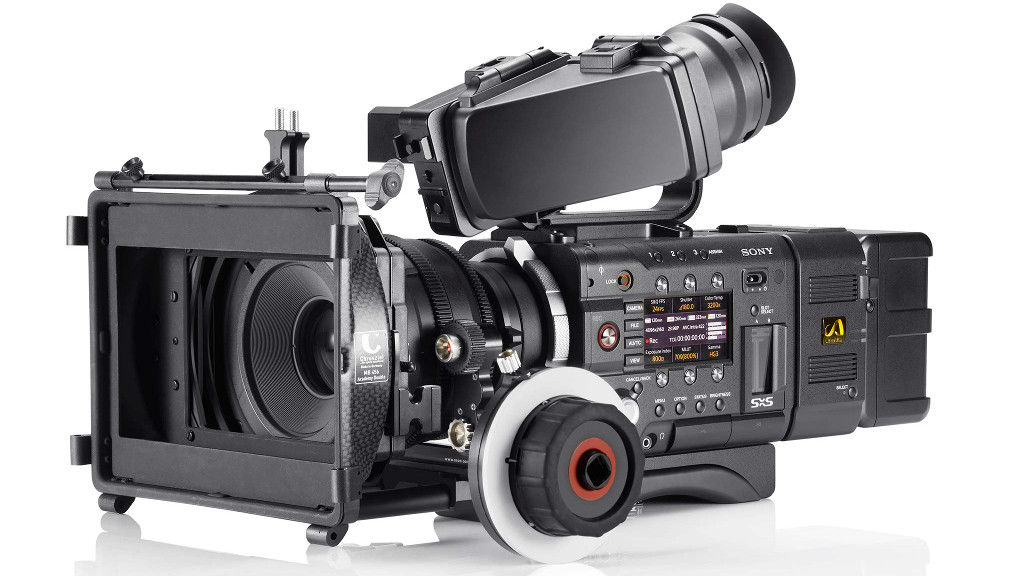

Sony PMW-F55 4K Cinealta
Product code: 2455
Features:
Power Requirements
DC 12 V (11 V to 17 V)
Power Consumption
Approx. 25 W (while recording XAVC 4K 60p, EVF Off, LCD monitor Off, 4K SDI On)
Operating Temperature
0°C to 40°C
32°F to 104°F
Storage Temperature
-20°C to +60°C
-4°F to +140°F
Mass
2.2 kg (without lens, handle, audio box and accessories)
4 lb 14 oz (without lens, handle, audio box and accessories)
Dimensions (W x H x D) *1
130 x 125 x 191 mm (without protrusions)
5 1/8 x 5 x 7 5/8 inches (without protrusions)
Battery Operating Time
Approx. 150 min with BP-FL75
Approx. 210 min with BP-GL95A
Recording Format (Video)
XAVC (AVC/H.264 High 4:2:2 Intra Profile)
4K: VBR, 600 Mbps max.
HD: SMPTE RP2027 Class100 compliant
MPEG2 HD (MPEG-2 Long GOP)
HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P@HL
*2
Recording Format (Audio)
LPCM 8CH (2CH recording/playback), 24-bit, 48-kHz
Recording Frame Rate
XAVC 4K (4096 x 2160):
23.98p/24p/25p/29.97p/50p/59.94p
XAVC QFHD (3840 x 2160): 23.98p/25p/29.97p/50p/59.94p
XAVC 2K (2048 x 1080):
23.98p/24p/25p/29.97p/50p/59.94p
XAVC HD (1920x1080):
23.98p/25p/29.97p/50p/59.94p
MPEG4 SStP (1920 x 1080):
23.98p/24p/25p/29.97p
MPEG2 HD (1920x1080):
23.98p/25p/29.97p/50i/59.94i
MPEG2 HD (1280 x 720):
50p/59.94p
*3
Recording/Playback Time
XAVC 4K, 23.98p: Approx. 25 min (SBP-64B)/Approx. 50 min (SBP-128B)
59.94p: Approx. 10 min (SBP-64B)/Approx. 20 min (SBP-128B)
XAVC HD, 23.98p: Approx. 70 min (SBP-64B)/Approx. 140 min (SBP-128B)
59.94p: Approx. 30 min (SBP-64B)/Approx. 60 min (SBP-128B)
MPEG2 HD: Approx. 60 min (SBS-32G1A)/Approx. 120 min (SBS-64G1A)
Imaging Device (Type)
Super 35mm equivalent Single-chip CMOS
Imaging Device (Pixel Count)
11.6M (total), 8.9M (effective)
Aspect Ratio
17:9
Built-in Filters
Clear, 0.9 (1/8ND), 1.8 (1/64ND)
Sensitivity (2000 lx, 89.9% reflectance)
Video Gamma: T12@24p (3200K light source)
ISO Sensitivity
S-Log2 Gamma: ISO 1250 (D55 light source)
Lens Mount
PL mount (with supplied lens mount adapter)
FZ mount (without supplied lens mount adapter)
Latitude
14-stop
S/N Ratio
57dB (Video Gamma, 24p, Noise Suppression OFF)
Shutter Speed
1/24s to 1/6,000s (23.98PsF)
Shutter Angle
4.2°to 360°(electrical shutter)
Slow Shutter (SLS)
2, 3, 4, 5, 6, 7, 8-frame accumulation
Slow & Quick Motion Function
XAVC 4K/QFHD: 1-60p (NTSC), 23.98p/29.97p
XAVC 4K/QFHD: 1-50p (PAL), 25p
XAVC 2K/HD: 1-180p (NTSC), 23.98p/29.97p
XAVC 2K/HD: 1-150p (PAL), 25p
White Balance
Preset (3200K, 4300K, 5500K), Memory
Gain
-3, 0, 3, 6, 9, 12, 18 dB, AGC
Gamma Curve
Standard (x6)
HG1, HG2, HG3, HG4, HG7, HG8
S-Log2 Gamma
Audio Input
CH-1/CH-2: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48V (AES/EBU) *4 switchable
DC Input
XLR-type 4-pin (male) (x1), 11 V to 17 V DC
DC Output
4-pin (x2), 11 V to 17 V DC (max. 1.8 A) with battery adapter
Viewfinder
Digital viewfinder interface (x1)
SDI Output
BNC (x4), HD mode: SDI 1/2 Line Output, SDI 3/4 Monitor Output
4K mode: SDI 1/2/3/4 Line Output, Display On/Off switchable
Test Output
BNC (x1), HD-Y or HD Sync (tri-level) V1.0
Timecode Input/Output
TC IN/OUT (x1) switchable
Genlock Input
BNC (x1)
Remote
8-pin (x1)
HDMI Output
A Type (x1)
USB
USB host, type-A (x1)
USB
USB device, Mini-B (x1)
Headphone Output
Stereo mini jack (x1)
Speaker Output
Monaural
Shutter
BNC (x1) *4
Wi-Fi
USB host, type-A (x1)
Type
ExpressCard/34 slot (x2)
SD card slot (x1)
